Horticulture product

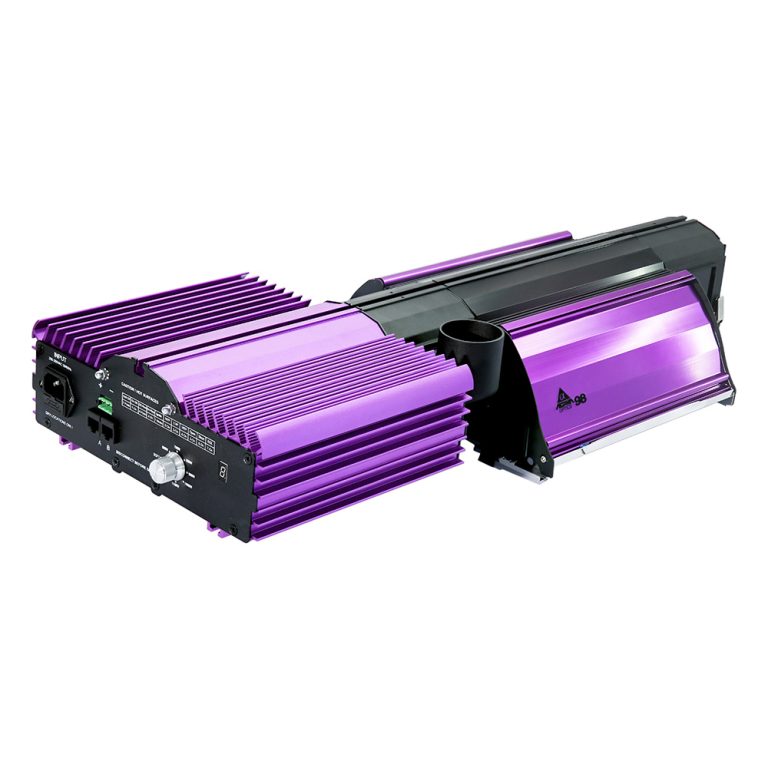

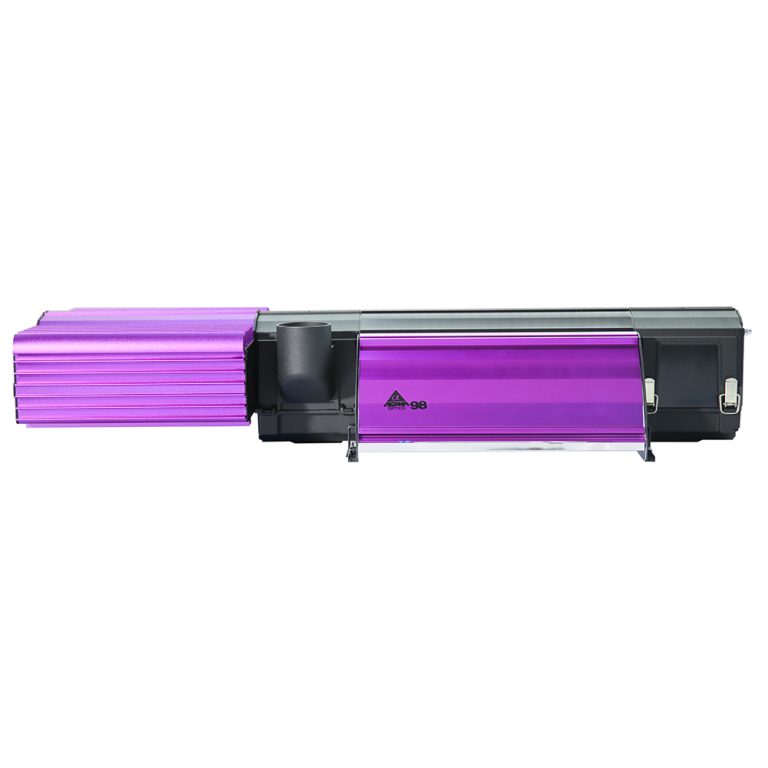

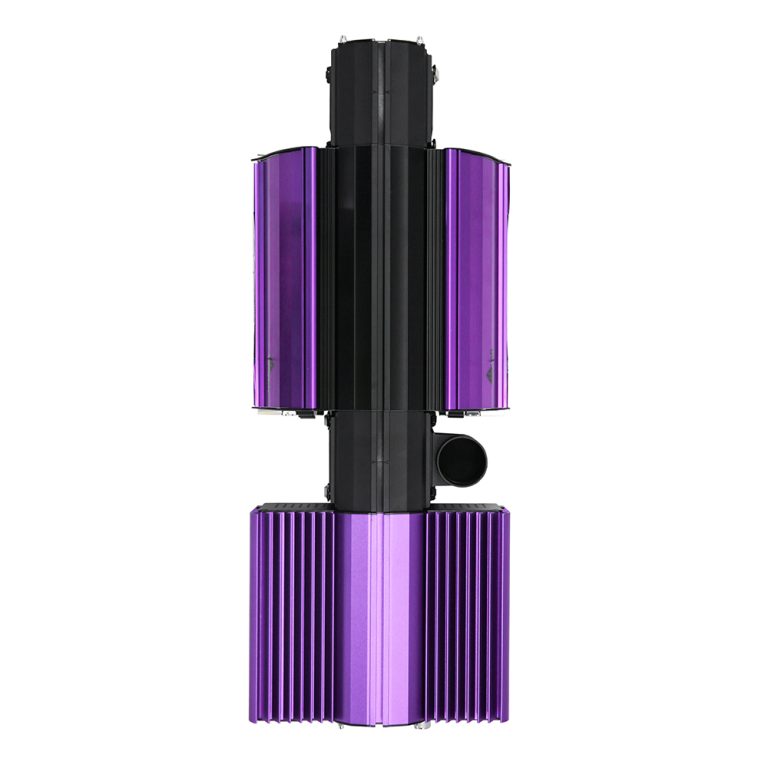

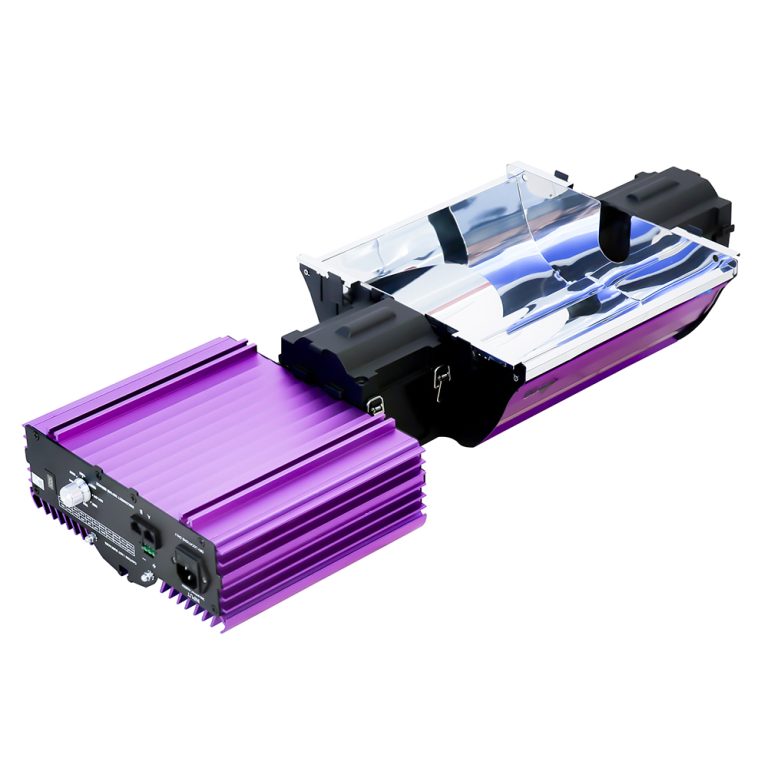

High Reflective 1000w Grow Light Fixture Double Ended Grow Light 1000 Watt Ballast

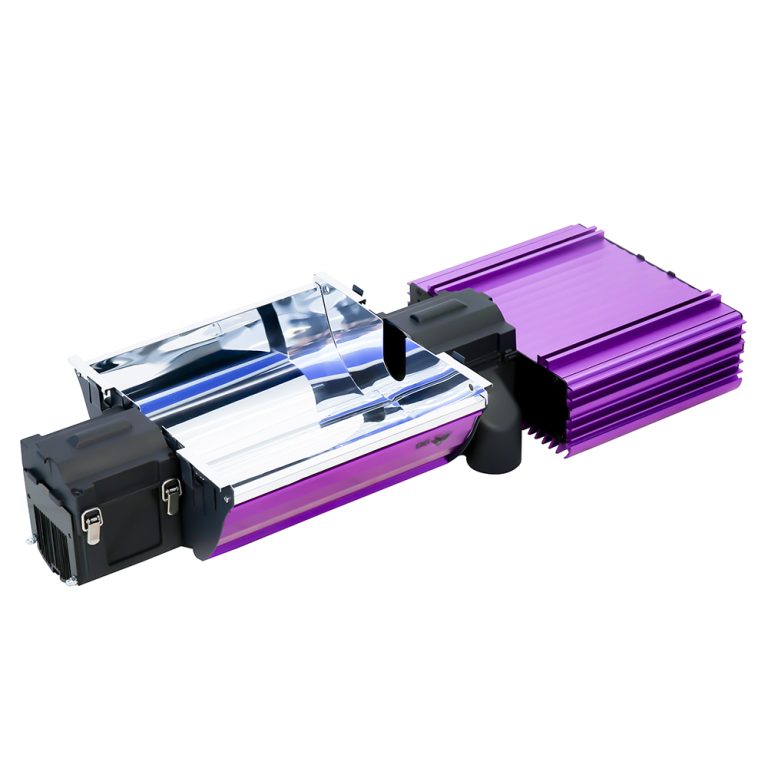

The TIDESTAR grow light fixture has been designed according to the SBCS (Single Bounce Clear Sight) principle and is manufactured with Miro Silver mirrors. In this way, the maximum possible efficiency (98%) of all existing horticultural reflectors is achieved.

Features
* Maximum output power (brightness) via boost (boost) and 400V
* Maximum attenuation range
for all digital ballasts* Soft-start function, soft-dimming, soft-off

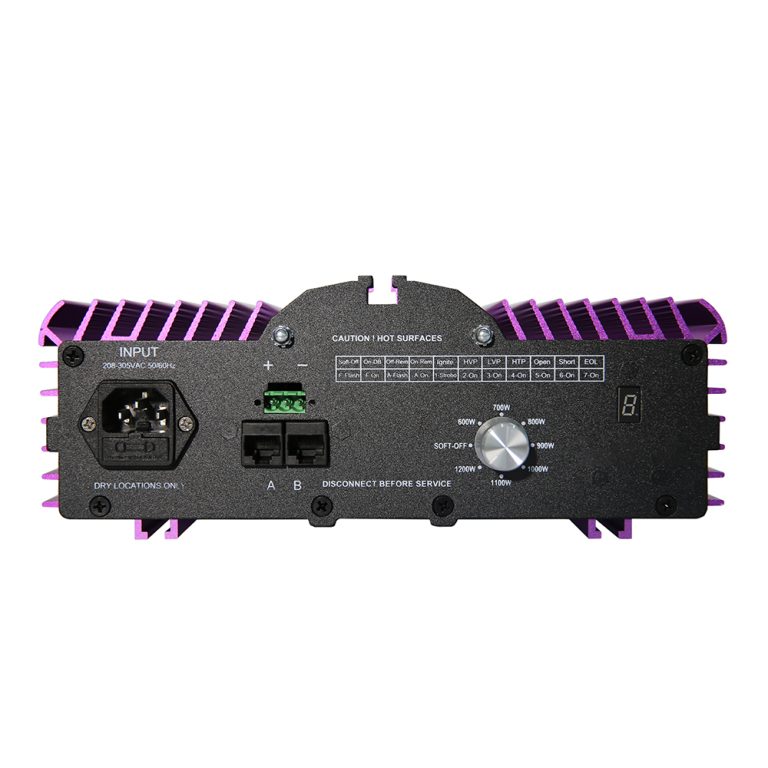

* 8-position manual attenuation, including shutdown
* Using the MaxiController
Smooth attenuation* More diagnostic LEDs
* EOL function (warning when lamp needs to be replaced) Complete luminaire with 1.000W ballast and 98 reflectors
* Nanotubes
available* Dimming levels: soft off, 600W, 700W, 800W, 900W, 1.000W, 1.100W, 1.200W
*Power consumption at 1.000W = Power consumption at 1.050W 4.5A at 230V
* Power consumption at boost 1.200W = 1.260W, 5.2A at 230V
* System PPF = 1,200umol/s
at 2.470W* Illuminated surface: 1.000W = minimum 1.4 m² (15.06 sq ft), maximum 3.3 m² (35.52 sq ft) – at 1.200W = minimum 1.65 m² (17.76 sq ft), maximum 4 m²
(43.05 sq ft)
* ø50 mm (2 in) connection
for active extraction* Dimensions 675x275x130 mm (26.5″ x 10.8″ x 5.1″)
* Weight 6.3 kg (13.88 lb)

Powerful, Robust and Durable.

Designed as a replacement for HID lighting, the RX-series is a high power, dimmable LED luminaire with a high IP rating. The robust all aluminium build, passive cooling and tempered glass cover ensure a long lifetime in the most demanding of environments.
The luminaire can be placed up to 4 m (13′) above the canopy. Typical lifetime is 50 000 hours for the light output to drop to 70% of nominal.

Model RX325 – 245 – 335 Watts (spectrum dependent)

Model RX360 – 370 Watts

Model RX400 – 395 Watts

Model RX500 – 480 – 490 Watts (spectrum dependent)

Model RX600 – 650 – 655 Watts (spectrum dependent)

Model RX800 – 795 Watts

40 µmol/m-2/s-1 (no natural-light conditions)

18 h day / 6 h Night

Seeds

Ebb and flow

High Reflective 1000w Grow Light Fixture Double Ended Grow Light 1000 Watt Ballast

Powerful, Robust and Durable.
